What Is an Upblast Exhaust Fan and How Does It Work?
Share
What is an upblast exhaust fan? In short, it is a roof-mounted centrifugal fan. It moves commercial kitchen exhaust upward and away from the building. It captures grease-laden air rising off fryers, grills, ranges, and other cooking equipment. The fan pulls that air through the exhaust duct, then discharges it high above the roof line. That focused, upward airflow is what separates an upblast exhaust fan from a general ventilation fan.
The complete answer: an upblast exhaust fan is a commercial kitchen ventilation fan mounted on a roof curb. Its centrifugal wheel draws smoke, heat, moisture, and grease-laden vapor out of the kitchen exhaust duct. The wheel expels that air vertically and away from the roof surface. This design helps prevent grease and debris from settling on roofing materials. It supports fire-safety and cleaning requirements, and gives cooking spaces a dependable path to move contaminated air outdoors.
Upblast fans are a core part of professional kitchen exhaust systems. Airflow performance, access for cleaning, and code compliance all matter here. If your cooking equipment produces smoke or grease-laden vapors, an exhaust system with a hood, ductwork, and fan is central to safe operation. Local requirements can vary, so design details should be confirmed with the Authority Having Jurisdiction for your area.
For a broader view of configurations and purchase decisions, see our Commercial Upblast Exhaust Fan buyer's guide. This article focuses on what the fan is, how it works, and where it belongs in a commercial kitchen.
What Is an Upblast Exhaust Fan?
What is an upblast exhaust fan? It is a roof-mounted centrifugal fan engineered for commercial kitchen exhaust systems. Instead of releasing contaminated air horizontally or toward the roof surface, the fan discharges grease-laden air vertically upward and away from the building. That directional airflow is central to grease management, roof protection, and dependable ventilation in professional cooking environments.
The fan sits above the kitchen, typically on a roof curb connected to the exhaust duct. Cooking vapors travel through the hood and ductwork before reaching the fan. Inside the housing, the centrifugal wheel uses rotation to move air through the system and direct the discharge upward. The result is a focused exhaust path. It helps carry smoke, heat, moisture, and grease away from the roof rather than letting them settle around the discharge point.
Why the upblast direction matters
Commercial kitchen exhaust is not the same as general room ventilation. Air from fryers, grills, ranges, and other cooking equipment can contain grease particles that accumulate on nearby surfaces. An upblast configuration is specifically designed to discharge that air upward and away from the roof, reducing the chance of grease and debris collecting on roofing materials. This design supports cleaner surroundings and helps protect the roof from avoidable contamination.
The fan is one part of a larger exhaust assembly. A complete system may include the cooking hood, filters, ductwork, roof curb, fan base, electrical components, and controls. Each part must work together to move the required volume of air safely. The fan itself cannot compensate for an undersized hood, restricted duct, poor make-up air, or an unsuitable roof installation.
Upblast fans are built for commercial applications
These units are intended for restaurants, institutional kitchens, food-service facilities, and other commercial environments where cooking produces smoke or grease-laden vapors. Their construction and installation requirements differ from those of residential bathroom or attic fans. Selecting a commercial unit involves more than matching a motor to a duct size. Airflow requirements, kitchen equipment, roof conditions, electrical service, cleaning access, and applicable regulations all matter.
For a broader overview of configurations, components, and selection considerations, see the Commercial Upblast Exhaust Fan buyer's guide. That resource addresses purchase decisions, while this article focuses on the basic definition and operating role of the fan.
A properly specified upblast fan helps create a controlled path for contaminated air to leave the kitchen. Final equipment selection and installation should be handled by qualified professionals, with local requirements confirmed through the Authority Having Jurisdiction.
How Does an Upblast Exhaust Fan Work?
An upblast exhaust fan is the final mechanical stage of a commercial kitchen exhaust path. It sits above the roof, connected to the kitchen duct, and uses a centrifugal wheel to pull contaminated air out of the hood and discharge it vertically. The arrangement is designed for grease management as well as airflow. Exact installation details, clearances, and equipment requirements should be confirmed with the Authority Having Jurisdiction (AHJ).
- The fan mounts over the exhaust duct. A roof curb supports the fan directly above the kitchen exhaust duct. This keeps the discharge assembly aligned with the duct system and places the fan where it can move air from the hood and ductwork to the exterior. The curb and roof opening must be coordinated with the building structure, weatherproofing, duct dimensions, and applicable local requirements.
- The centrifugal wheel draws air upward. As the motor turns the centrifugal wheel, the wheel draws grease-laden air from the duct into the fan housing. Centrifugal fan construction changes the direction and velocity of the airflow, allowing the exhaust system to move contaminated air vertically rather than simply releasing it near the roof. An upblast unit is designed for this commercial-kitchen duty, not as a substitute for a complete hood, duct, and exhaust system.
- The discharge stack directs exhaust away from the roof. The fan housing sends the air up and away from the roof surface. That discharge direction helps reduce the re-entrainment of grease and debris onto roofing materials, equipment, and nearby air intakes. The design does not eliminate the need for proper duct construction, separation, inspection, or cleaning. NFPA 96 guidance identifies the need for an exhaust system when cooking equipment produces smoke or grease-laden vapors, including the hood, ductwork, and exhaust fan. See the CDC/NIOSH NFPA 96 checklist for the referenced requirement.
- The hinged base provides service access. A commercial upblast fan should include a hinged fan base so qualified personnel can access the fan and the duct connection for inspection and cleaning. This feature allows the fan to be opened or tilted away without removing the entire assembly from the curb. Hinged access is a critical cleaning feature for NFPA 96 service requirements, as documented in AirSupply's commercial exhaust fan guidance. Exhaust systems require thorough cleaning and inspection because accumulated grease and oily sludge can create a serious fire hazard.
In practical terms, the fan, roof curb, duct, hood, and controls function as one engineered system. Airflow performance depends on correct sizing, duct routing, static pressure, motor selection, and installation quality. A fan that is powerful enough on paper can still perform poorly if the duct system or curb connection is not designed for the application. For a broader equipment and configuration overview, review the Commercial Upblast Exhaust Fan buyer's guide.
Upblast vs Downblast: What Is the Difference?
Upblast and downblast fans can both move air from a commercial space, but their discharge direction and intended application are fundamentally different. The right choice depends on what the system is exhausting, where that air should go, and whether the kitchen produces grease-laden vapors. In a commercial cooking environment, treating these fan types as interchangeable can create roof-maintenance, airflow, and fire-safety problems.
An upblast exhaust fan is a centrifugal fan designed to move contaminated air vertically and discharge it upward and away from the roof. That configuration helps reduce grease and debris accumulation on the roof surface. Downblast fans discharge air downward and are generally used for ordinary ventilation applications where the exhaust does not contain grease-laden cooking vapors.
| Feature | Upblast exhaust fan | Downblast exhaust fan |
|---|---|---|
| Fan design | Centrifugal fan engineered for commercial exhaust applications. | Fan configuration intended for general ventilation and non-grease exhaust. |
| Discharge direction | Moves air vertically and discharges it upward, away from the roof surface. | Discharges exhausted air downward toward the area around the fan. |
| Typical application | Commercial kitchen exhaust systems connected to Type I hoods and cooking equipment that produces grease-laden vapors. | General building ventilation, equipment cooling, and other applications without grease-laden exhaust. |
| Grease management | Upward discharge helps limit grease accumulation on roofing materials when the system is correctly designed and maintained. | Not intended for grease-laden air, where downward discharge can deposit contaminants near the roof or occupied areas. |
| System considerations | Must be selected as part of a complete hood, ductwork, and exhaust-fan system. The local AHJ should confirm installation requirements. | Should not be substituted for a commercial kitchen grease-exhaust fan simply because the airflow rating appears suitable. |
For cooking equipment that produces smoke or grease-laden vapors, NFPA 96 guidance calls for an exhaust system that includes the hood, ductwork, and fan. The CDC/NIOSH checklist summarizes this requirement at its commercial kitchen fire-safety checklist. The fan also needs to be accessible for professional inspection and cleaning, and the complete installation should be reviewed with the Authority Having Jurisdiction before work begins.
The practical takeaway is simple: choose an upblast fan for grease-producing commercial kitchen exhaust, and reserve downblast equipment for suitable general-ventilation duties. If the application, hood type, or discharge location is unclear, have a qualified ventilation professional evaluate the entire system rather than matching fans by airflow alone.
Where Is an Upblast Exhaust Fan Installed?

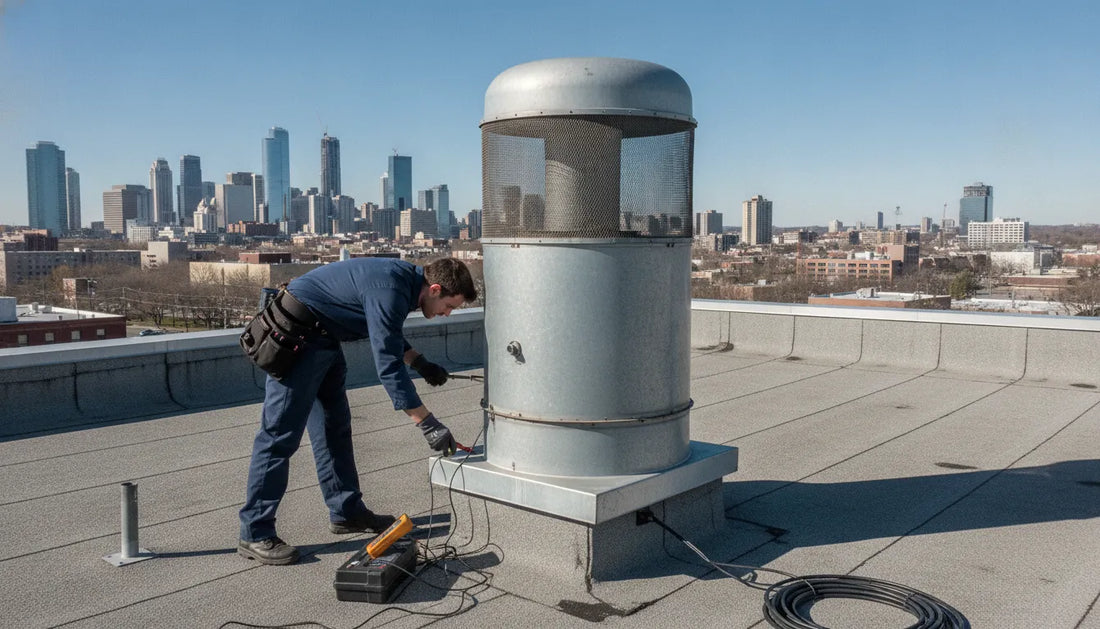

An upblast exhaust fan is typically installed outdoors on the roof of a commercial kitchen, positioned on a roof curb directly above the exhaust ductwork. This arrangement gives grease-laden air a short, controlled path from the hood and duct system to the exterior. The fan discharges vertically upward and away from the roof surface, helping limit grease accumulation around the penetration and reducing the risk of exhaust re-entering the building.
The roof curb supports the fan, creates a stable connection to the duct, and helps maintain the weatherproofing of the roof assembly. The curb and duct transition must be coordinated with the roof structure, hood location, duct route, access requirements, and the fan's physical dimensions. A proper installation is not simply a matter of placing a fan over an opening. The equipment, curb, ductwork, electrical service, and roof details must function as one exhaust system.
Common installation locations
Restaurants are the most familiar application. A cooking line with a commercial hood often routes through the ceiling and roof so the fan can discharge above the building. Upblast fans are also common on food truck roofs, where space is limited. The ventilation system must be integrated with the vehicle's cooking equipment, roof construction, and service access. Industrial kitchens, commissaries, cafeterias, and other facilities producing smoke or grease-laden vapors may use the same roof-mounted configuration.
NFPA 96 guidance identifies exhaust systems as necessary for cooking equipment that produces smoke or grease-laden vapors. The complete system includes more than the roof fan, so review it as a full hood, duct, and fan assembly. The review should not treat the fan as an isolated equipment purchase. Local requirements can vary by jurisdiction, building type, roof construction, and cooking operation. Consult the Authority Having Jurisdiction, or AHJ, and a qualified installer before selecting equipment.
Location and airflow must match the design
The fan location also affects serviceability. Leave clearance for inspection, cleaning, motor access, and removal of accumulated grease. A hinged base can make access around the fan and ductwork more practical during maintenance. It does not replace the need for a correctly designed system.
Fan capacity must match the exhaust system's required airflow. Before finalizing the curb location or equipment, confirm the required cubic feet per minute, or CFM. Confirm static pressure, duct dimensions, hood design, and available electrical service too. This guide to sizing an upblast exhaust fan can help organize the CFM review. Correct placement and sizing work together. A well-located fan cannot fix insufficient airflow, and a properly sized fan will not perform well if the duct or roof install is poorly coordinated.
Who Needs an Upblast Exhaust Fan?
Any commercial cooking operation that produces smoke, grease-laden vapors, or substantial heat may need an upblast exhaust fan as part of a properly designed exhaust system. This commonly includes full-service restaurants, cafeterias, commissary kitchens, institutional foodservice operations, and food trucks. The fan is not an optional add-on for appearance or comfort. It is one component of the hood, ductwork, and exhaust assembly that helps move contaminated air out of the cooking environment and away from the building.
NFPA 96 guidance identifies cooking equipment that produces smoke or grease-laden vapors as requiring an exhaust system. That system includes the hood, ductwork, and exhaust fan, so selecting the fan cannot be separated from the rest of the ventilation design. The exact equipment, clearances, discharge arrangement, and installation requirements depend on the cooking process, building, jurisdiction, and authority having jurisdiction (AHJ). Operators should confirm the design with qualified professionals and local officials before installation.
Restaurants and commercial kitchens
Restaurants with ranges, griddles, fryers, charbroilers, woks, or other grease-producing appliances are the most familiar applications. These operations generate vapors that can deposit inside the hood and duct system if airflow, capture, and exhaust equipment are not properly matched. An upblast configuration directs exhaust vertically and away from the roof surface, supporting grease management while helping keep the discharge from affecting nearby building areas.
Food trucks and mobile kitchens face the same fire-safety concern in a more compact setting. Limited space does not remove the need for an appropriately designed exhaust system. The operator, hood designer, equipment supplier, and AHJ should account for the vehicle layout, cooking appliances, available power, exhaust path, and service access. A solution that fits physically but cannot be inspected, cleaned, or operated safely is not an adequate ventilation plan.
Facility managers and kitchen designers
Facility managers and kitchen designers are responsible for more than initial airflow. They must consider access for inspection, service, and recurring cleaning, along with the system's relationship to the roof, ductwork, hood, and replacement parts. NFPA 96 cleaning guidance calls for exhaust systems to be cleaned to bare metal at appropriate intervals, preventing heavy grease or oily-sludge contamination that can increase fire risk. Proper maintenance and cleaning also help preserve system performance over time.
For teams comparing motor arrangements and service requirements, this direct drive upblast exhaust fan guide provides useful context. Regardless of the selected configuration, specify the complete system with fire safety and maintainability in mind. Review the applicable requirements with the AHJ. Plan professional installation rather than treating commercial exhaust as a do-it-yourself project.
Ready to spec the right upblast exhaust fan? Contact AirSupply for a consultation and quote.
Frequently Asked Questions
When should you use an upblast exhaust fan instead of a downblast fan?
Use an upblast fan when the system handles grease-laden air from commercial cooking equipment and needs to discharge that air vertically away from the roof. A downblast fan directs air downward or across the roof area, so it may be better suited to general ventilation applications rather than grease exhaust. The hood, ductwork, fan, discharge direction, and clearances must be designed as one system for the specific kitchen.
Where is an upblast exhaust fan installed?
It is typically installed outdoors on a roof curb above the commercial kitchen, connected to the exhaust duct that serves the cooking hood. The exact location depends on the building layout, duct route, roof construction, required clearances, and local requirements. Have the design reviewed by the Authority Having Jurisdiction, or AHJ, before installation because code requirements can vary by location.
Are upblast exhaust fans rated for grease-laden air and fire code compliance?
Many commercial kitchen upblast fans are designed for grease-laden exhaust, but the fan alone does not make an installation code-compliant. NFPA 96 guidance covers exhaust systems serving cooking equipment that produces smoke or grease-laden vapors, including the hood, ductwork, and exhaust fan. Confirm the equipment listing, system design, installation, and inspection requirements with a qualified professional and the AHJ. Source: CDC/NIOSH NFPA 96 checklist.
How often does an upblast exhaust fan need cleaning?
Cleaning frequency depends on the cooking operation, grease production, and applicable inspection requirements. Clean the exhaust system before grease or oily sludge becomes a heavy fire hazard. Cleaning may require scraping, brushing, or other effective methods to reach bare metal. A hinged fan base can provide access for inspection and cleaning. Follow the maintenance schedule established for the system and applicable NFPA 96 guidance. Source: CDC/NIOSH NFPA 96 checklist.
